Type 型号 |
Pressure Nominal(MPa) 公称压力 |
Working Temperature(℃) 工作温度 |
Filter Net Eye Number 滤网目数 |
APPlicable Media 适用介质 |
| YG—W | 2.0 | 300 | 20～150 | Steam，Air，Water，Oil |
| YG—F | 5．O | 425 | 20～150 | 蒸汽、空气、水、油 |
|

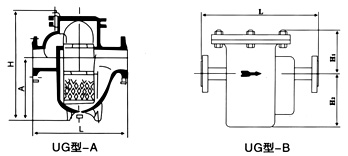

Type 型号 |
Nominal Diameter(DN)公称通径 | External dimensions(mm)外形尺寸 | ||
| A | L | H | ||
| UG型一A | 10 | 150 | 80 | 125 |
| 15 | 150 | 80 | 125 | |
| 20 | 180 | 100 | 153 | |
| 25 | 180 | 100 | 153 | |
| 40 | 200 | 155 | 304 | |
| 50 | 300 | 155 | 340 | |
| 65 | 340 | 220 | 380 | |
| 80 | 400 | 250 | 420 | |
| 100 | 500 | 295 | 502 | |
| 150 | 600 | 335 | 650 | |
| 200 | 786 | 395 | 770 | |
| UG型一B | Nominal Diameter(DN)公称通径 | External dimensions(mm)外形尺寸 | ||
| L | H1 | H2 | ||
| 15 | 270 | 90 | 145 | |
| 20 | 270 | 90 | 145 | |
| 25 | 270 | 90 | 145 | |
| 32 | 320 | 125 | 175 | |
| 40 | 320 | 125 | 175 | |
| 50 | 320 | 125 | 175 | |
| 65 | 430 | 140 | 220 | |
| 80 | 430 | 140 | 220 | |
| 100 | 430 | 140 | 220 | |
| 125 | 460 | 160 | 235 | |
| 150 | 460 | 170 | 235 | |
| 200 | 460 | 190 | 235 | |
